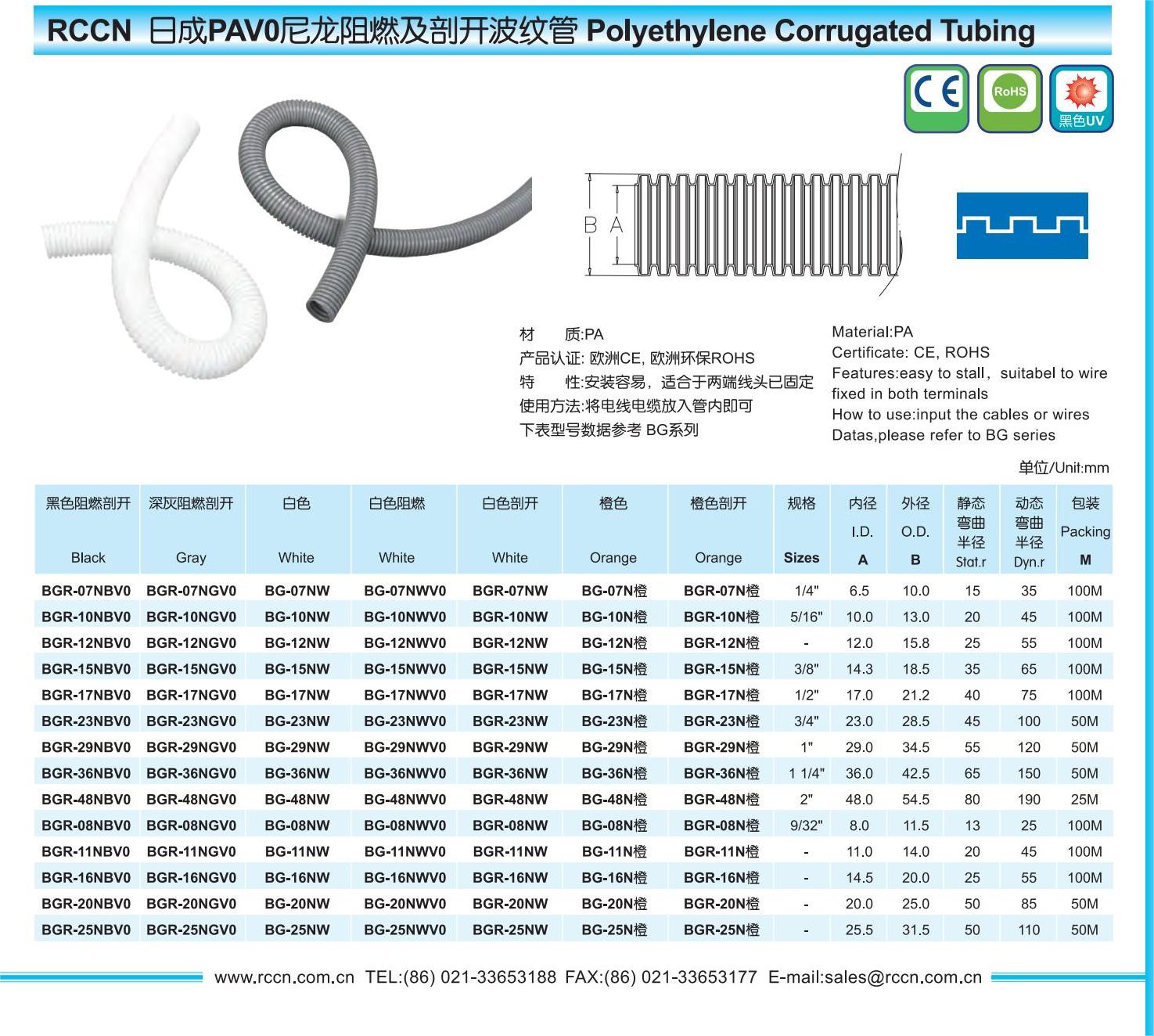

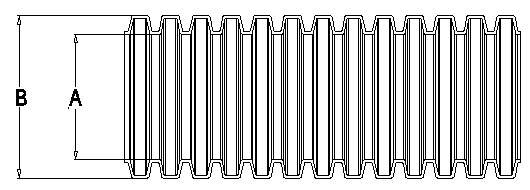

| ?????????????????? 型號?Item No. | 規格Sizes | 內徑 I.D. A | 外徑 O.D. B | 包裝 Packing M | |
| 黑色 Black??Ral9005 | 深灰色 Gray??Ral7037 | ||||
| BGR-07NBV0 | BGR-07NGV0? | 1/4"6 | 6.5 | 10.0 | 100M |
| BGR-10NBV0? | BGR-10NGV0 | 5/16"? | 10.0 | 13.0 | 100M |
| BGR-12NBV0? | BGR-12NGV0? | -? | 12.0 | 15.8 | 100M |
| BGR-15NBV0? | BGR-15NGV0? | 3/8"? | 14.3 | 18.5 | 100M |
| BGR-17NBV0? | BGR-17NGV0? | 1/2"? | 17.0 | 21.2 | 100M |
| BGR-23NBV0? | BGR-23NGV0? | 3/4"? | 23.0 | 28.5 | 50M |
| BGR-29NBV0? | BGR-29NGV0? | 1"2 | 29.0 | 34.5 | 50M |
| BGR-36NBV0? | BGR-36NGV0? | 1 1/4"? | 36.0 | 42.5 | 50M |
| BGR-48NBV0? | BGR-48NGV0? | 2"4 | 48.0 | 54.5 | 25M |
| BGR-08NBV0? | BGR-08NGV0? | 9/32"? | 8.0 | 11.5 | 100M |
| BGR-11NBV0? | BGR-11NGV0? | -? | 11.0 | 14.0 | 100M |
| BGR-16NBV0? | BGR-16NGV0? | -? | 14.5 | 20.0 | 100M |
| BGR-20NBV0? | BGR-20NGV0? | -? | 20.0 | 25.0 | 50M |
| BGR-25NBV0? | BGR-25NGV0? | -? | 25.5 | 31.5 | 50M |
?
